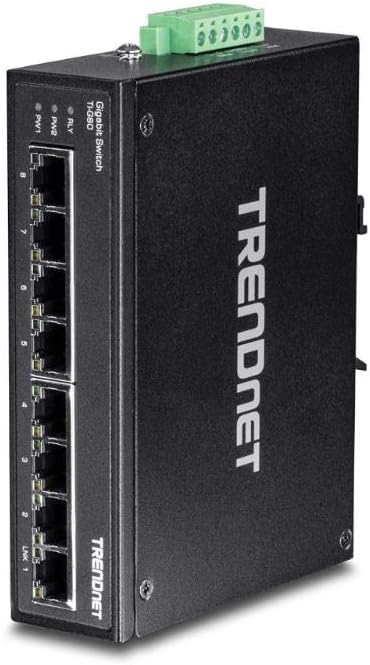

8-Port Hardened Industrial Gigabit DIN-Rail Switch, 16 Gbps Switching Capacity, IP30 Rated Metal Housing, Black L84099
Sale price
$18.90
Regular price $76.28
Skip to product information
8 x Gigabit Ethernet ports
Power supply sold separately (model TI-M6024)
Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
8-Port Hardened Industrial Gigabit DIN-Rail Switch, 16 Gbps Switching Capacity, IP30 Rated Metal Housing, Black L84099
Sale price
$18.90
Regular price $76.28
Shipping calculated at checkout.
8 x Gigabit Ethernet ports
Power supply sold separately (model TI-M6024)
Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
TRENDnet’s TI-G80 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit ports and a 16 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.
Package Contents:- TI-G80- Quick Installation Guide- Removable terminal block- DIN-rail / wall mount kit
| TI-G50 | TI-G62 | TI-G80 | TI-G102 | |
|---|---|---|---|---|
| Device Interface | 5 x Gigabit •5 x Gigabit ports •4-pin removable terminal block •LED indicators | 5 x Gigabit ports •1 x Shared SFP slot (port F5) •1 x Gigabit SFP slot (port F6) •6-pin removable terminal block •LED indicators | 8 x Gigabit ports •6-pin removable terminal block •LED indicators | 8 x Gigabit ports •2 x Gigabit Ethernet ports •2 x Shared SFP slots •6-pin removable terminal block •LED indicators |
| Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) •Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) •Gigabit: 2000 Mbps (full duplex) | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) •Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) •Gigabit: 2000 Mbps (full duplex) | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) •Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) •Gigabit: 2000 Mbps (full duplex) | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) •Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) •Gigabit: 2000 Mbps (full duplex) |
| RAM Buffer | 1024 KB | 1024 KB | 1024 KB | 2048 KB |
| Switch Fabric | 10 Gbps | 12 Gbps | 16 Gbps | 20 Gbps |
| Mac Address Table | 8 K entries | 2 K entries | 8 K entries | 16 K entries |
| Power Consumption | 2.76 Watts (max.) | 3.84 Watts (max.) | 5 Watts (max.) | 5.76 Watts (max.) |
| Wallmount | ||||
| Operating Temperature | - 40 to 75 °C (-40 to 167 °F) B12 | - 40 to 75 °C (-40 to 167 °F) | - 40 to 75 °C (-40 to 167 °F) | - 40 to 75 °C (-40 to 167 °F) |
| Dimensions | 113 x 82 x 31 mm (4.4 x 3.2 x 1.2 in.) | 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.) | 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.) | 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.) |
